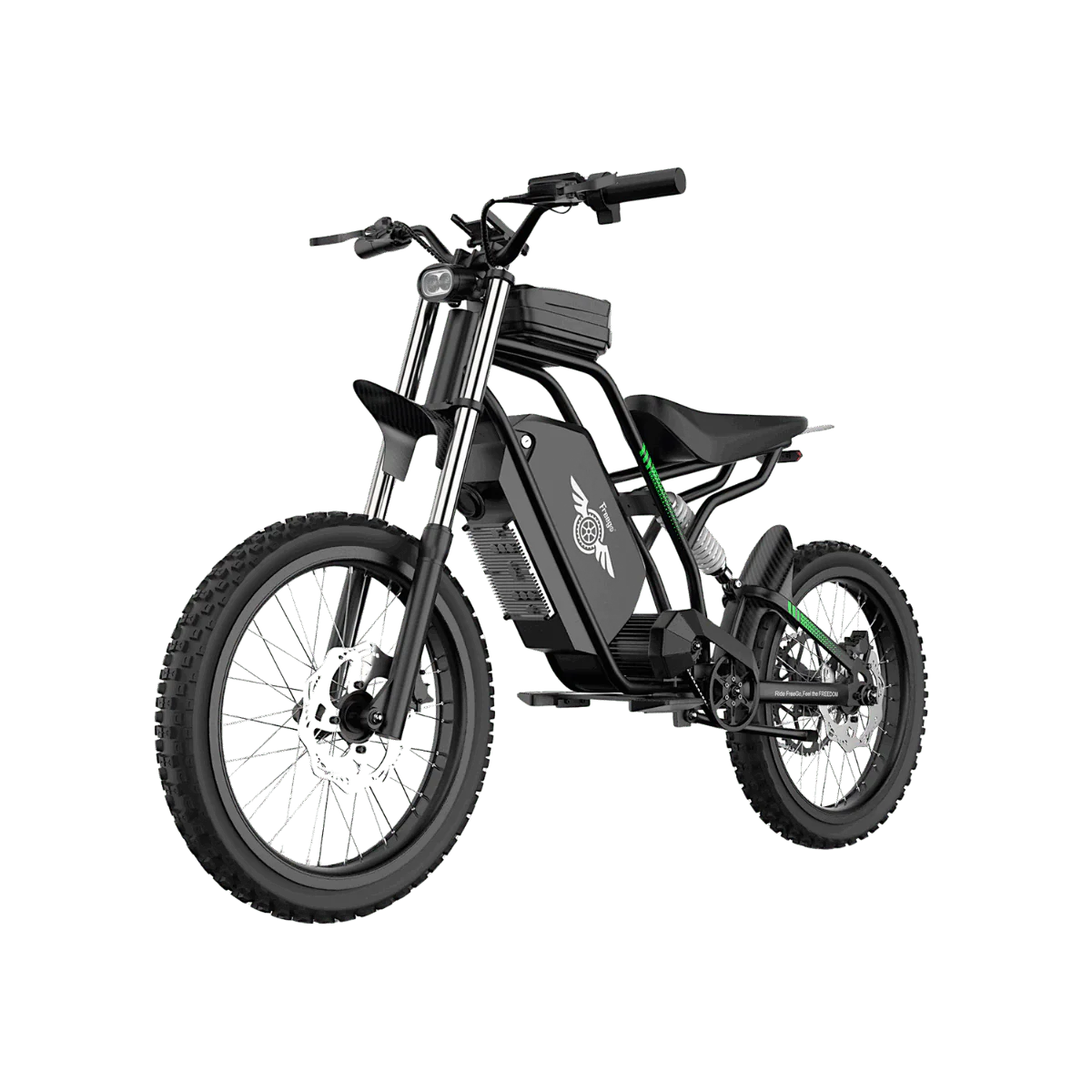

Nova 3 Mid-Drive All-Terrain Dirt eBike (Freego)

• Motor Power (Peak): 3000W Mid-Drive Brushless Motor
• Battery: 60V, 25Ah(1500Wh)
• Riding Range: 20–50 mi (32–80 km)
• Speed: Speed 1: 10 MPH, Speed 5: 40 MPH. (5 Speed levels available.)
• Frame: High-strength Steel Pipe
• Display: LCD Display
• Max Loading: 264 lbs (120kg)
• Net Weight: 117 lbs (53 kg)
• Charging Time: 5-8 H
• Transmission Gears: This transmission system achieves a 1:9.6 reduction ratio via two-stage speed reduction. The first stage uses a pulley (23:51 ratio), and the second uses a chain sprocket (13:56 ratio)
• Brake System: Hydraulic Brake
• Wheel Size & Tires: 3.15×17 Inches Tires
• Suspension: High-Performance Hydraulic Front & Rear Shock Absorbers
• Rear Brake Light: Yes
• Package Size: 59 x 11.8 x 32 in (150 x 30 x 83 cm)
• Suggested Rider Height: 4'8"-6'1" (144-186cm)

GEOMETRY:

A - Handlebar Length
28.7"/73cm

B - Total Length
70.1"/ 178cm

C - Total Height
40.9"/ 104cm

D - Seat Length
17.5"/ 44.5cm

E - Top Tube Length
31.1"/79cm

F - Tire Width
2.6"/ 6.5cm

G - Wheel Diameter
23.2"/ 59cm

H - Seat Height
31.7"/ 80.5cm

I - Wheelbase
46.5"/ 118cm

J - Suspension Length
31.5"/ 80cm

K - Seat Height from Tire
9.8"/ 25cm

L - Battery Length
15.4"/ 39cm
