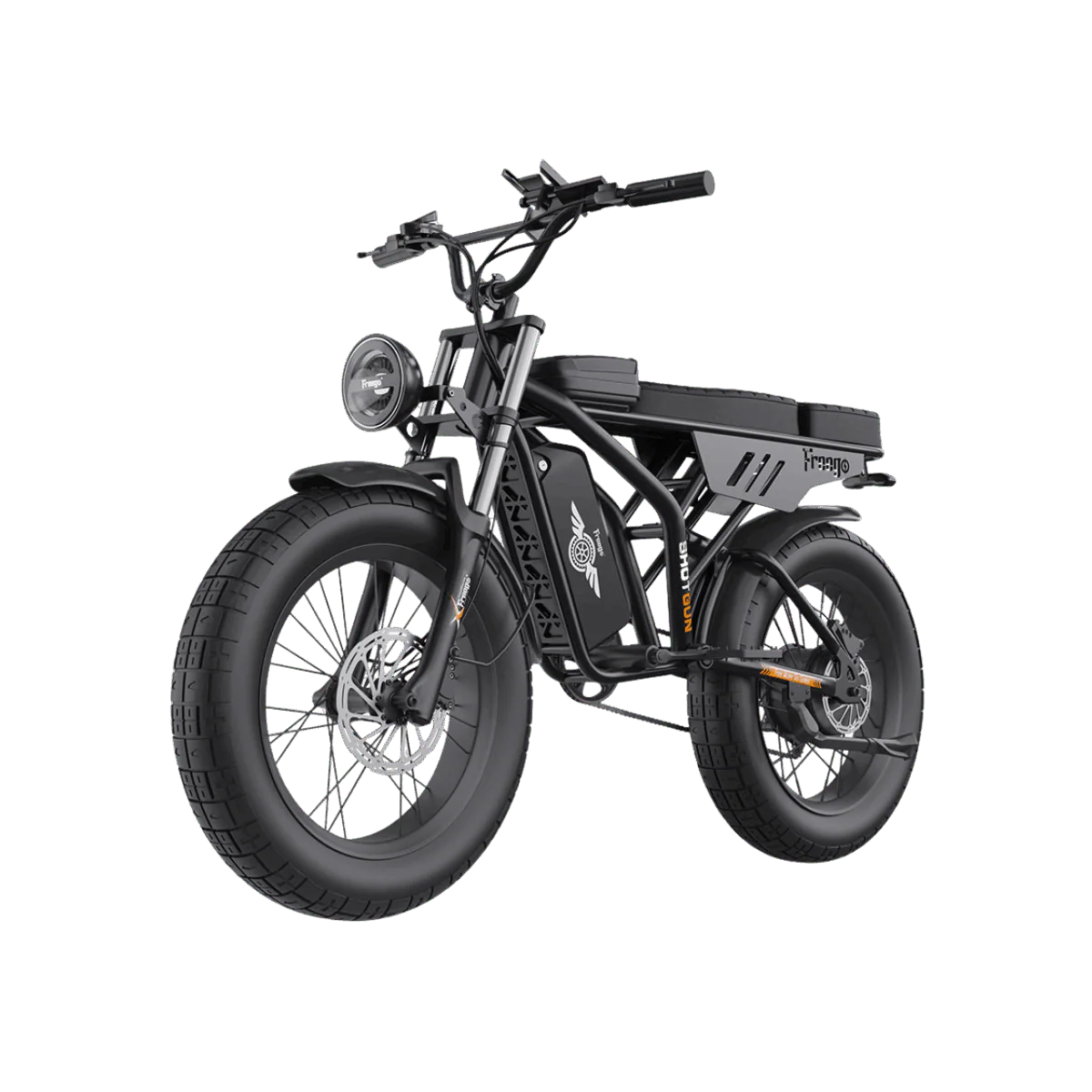

Shotgun Prime f2 PRO (Freego)

SPECIFICATIONS:

• Motor Power (Nominal): 750W Rear Hub (1400W Peak)
• Battery: 48V, 22.5AH (1080Wh)
• Riding Range: 31–50 mi (50–80 km)
• Speed: Class 2: 20 MPH, Off-Road Mode Available
• Frame: High-strength Steel Pipe
• Display: LCD Display
• Max Loading: 330 lbs (150kg)
• Net Weight: 112 lbs (51 kg)
• Charging Time: 5-10 H
• Transmission Gears: SHIMANO 7 Speed Gears
• Brake System: Front+Rear Hydraulic Brake
• Wheel Size & Tires: 20 x 4" Air-filled tires with tube
• Suspension: Full Suspension for Front & Rear
• Rear Brake Light: Yes
• Charger Specification: Output: 54V, 2A; Input: 100-240V, 50/60Hz
• Suggested Rider Height: 5'4"-6'5"

GEOMETRY:

A - Handlebar Length
27.6"/ 70cm

B - Total Length
66.9"/ 170cm

C - Total Height
44.5"/ 113cm

D - Seat Length
28.9"/ 73.5cm

E - Top Tube Length
41.7"/ 106cm

F - Tire Width
4"/ 10cm

G - Wheel Diameter
21.7"/ 55cm

H - Seat Height
33.5"/ 85cm

I - Wheelbase
45.3"/ 115cm

J - Seat Height from Tire
10.6"/ 27cm

K - Head Tube Length
21.7"/ 55cm

L - Battery Length
13.8"/ 35cm
